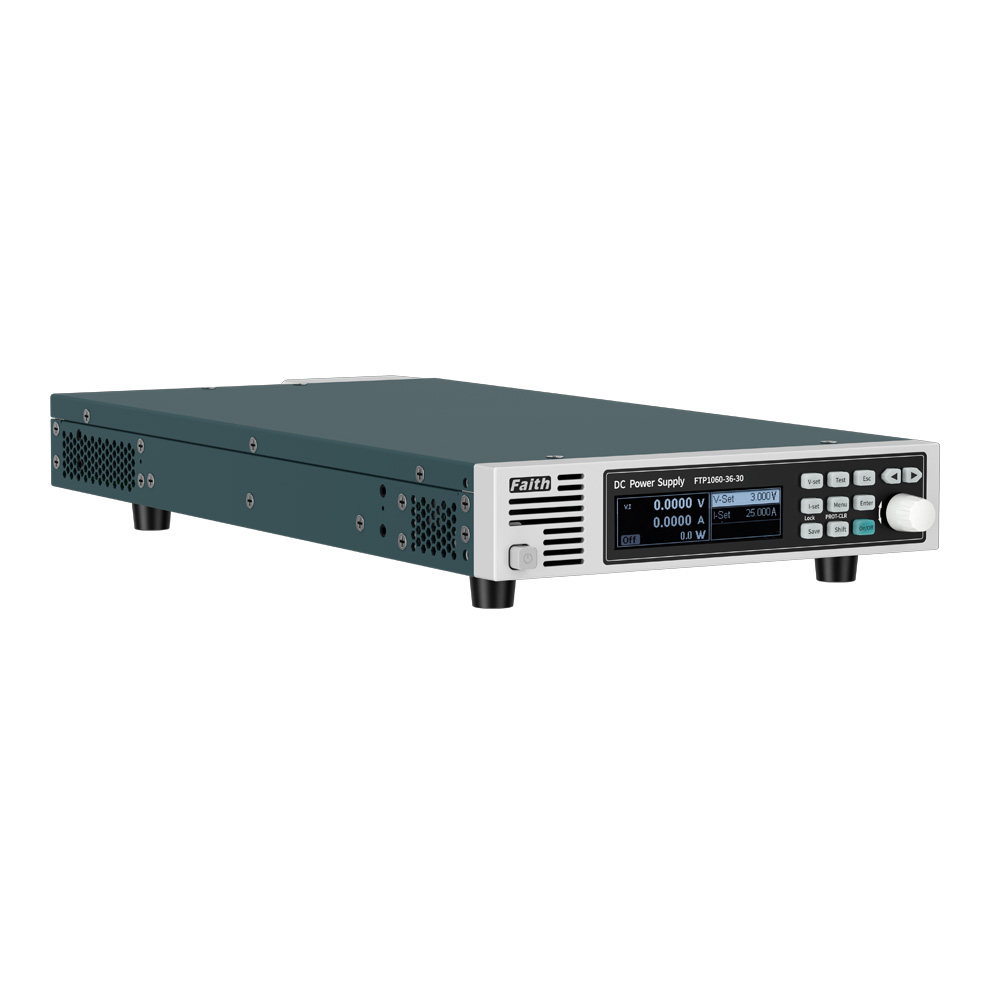

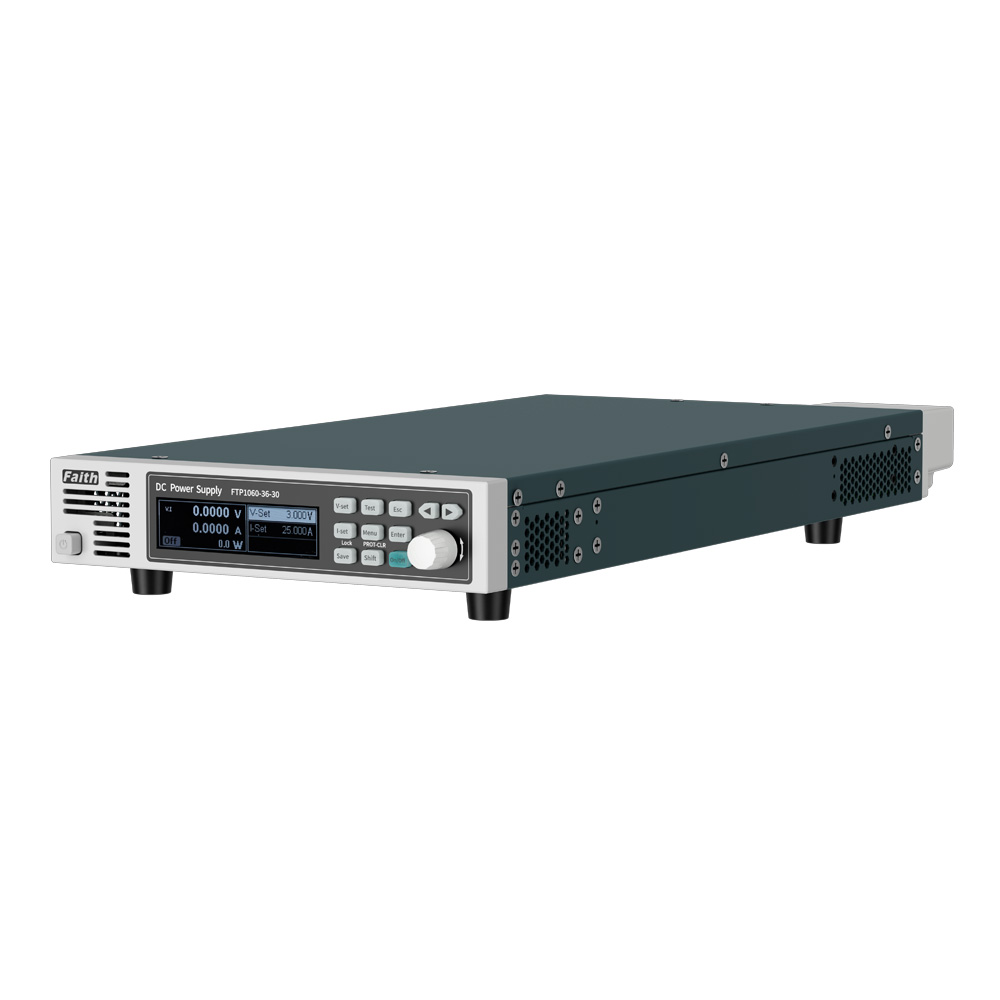

The FTP1000 series is a small volume, high performance and high power density programmable DC source.The 1U/19 "full width \ half width design makes the single device more lightweight and the cabinet integration more convenient.The maximum output power 1800W,it can be applied in different fields such as laboratory testing, system integration, and large-scale production line testing.

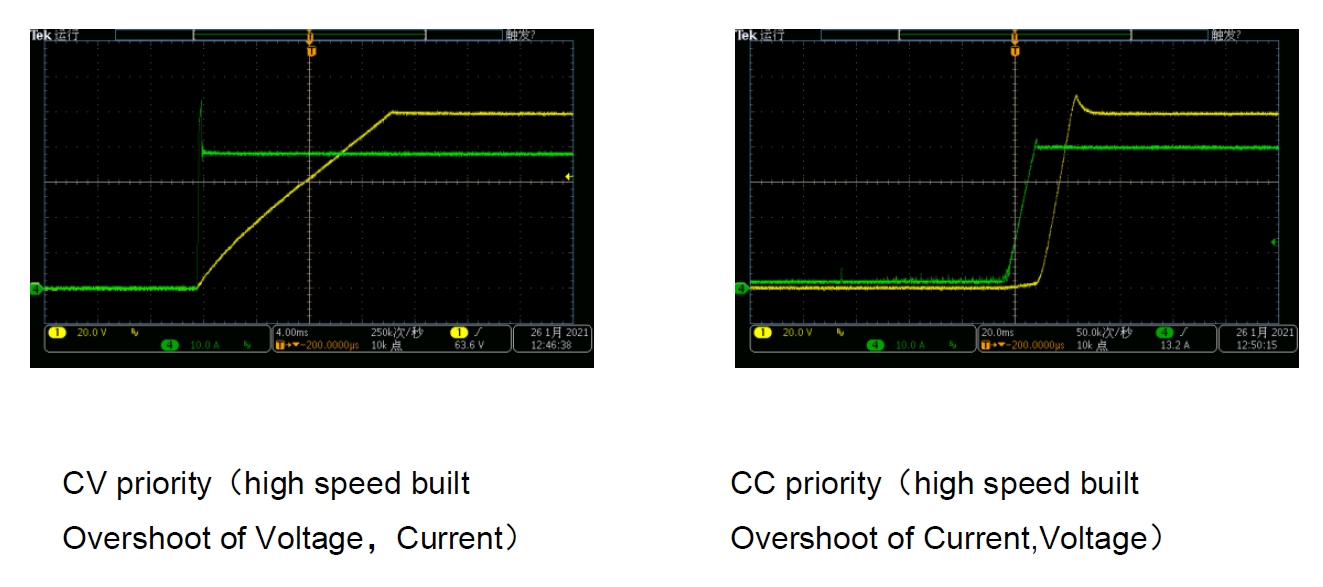

CV、CC priority
When the power output is connected to an inductive or capacitive load, it can cause a certain degree of overshoot in the output current or voltage. In mild cases it can trigger the protection of the tested equipment, and in severe cases it can directly cause damage to the tested equipment.The FTP1000 series have CV and CC output priority functions,it can suppress output overshoot effectively and its impact.

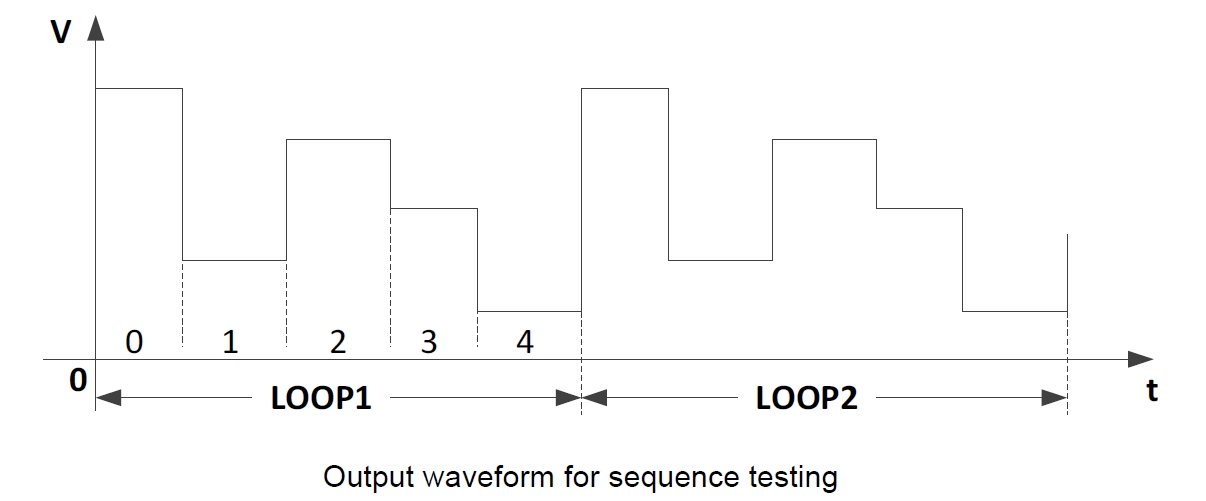

Sequence function
In the sequence output mode, complex output changes can be simulated based on user edited sequence parameters.Sequence output function, with menu option "SEQ", allow user to edit voltage and current waveform themselves.
FTP1000 series provide 10 sequence files, each supporting up to 100 running steps.It can be set the voltage setting,current setting and runtime in running step.Support “Cycle numbers”and “Link file”,The cycle numbers can control sequence cycle running numbers,set 0 in infinite loop.The Link files can be used to run links between different files,set 0 to indicate no link.
Remote sensing function

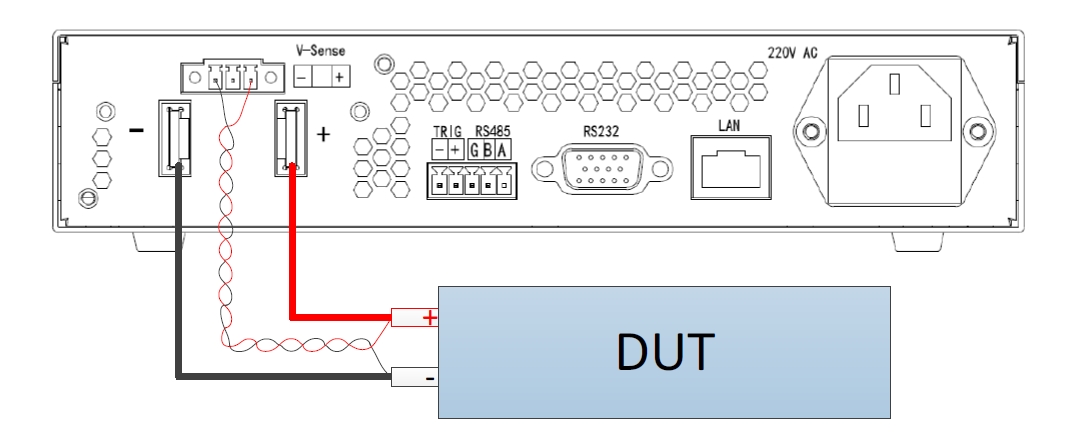

A voltage drop will be occurred on the connection line between the power supply and the load terminal when the load consumes high current, then remote sensing can automatically compensate for the voltage drop on the load line.the wiring diagram as below:
Battery charge function

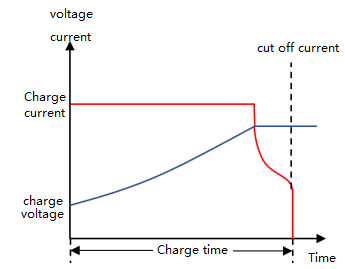

FTP1000 series provide battery charge function,can define charge voltage、charge current、charge cut off voltage、charge cut off current、charge cut off capacity、charge cut off time etc，fully simulate the charging process of the battery, which can effectively protect the battery.

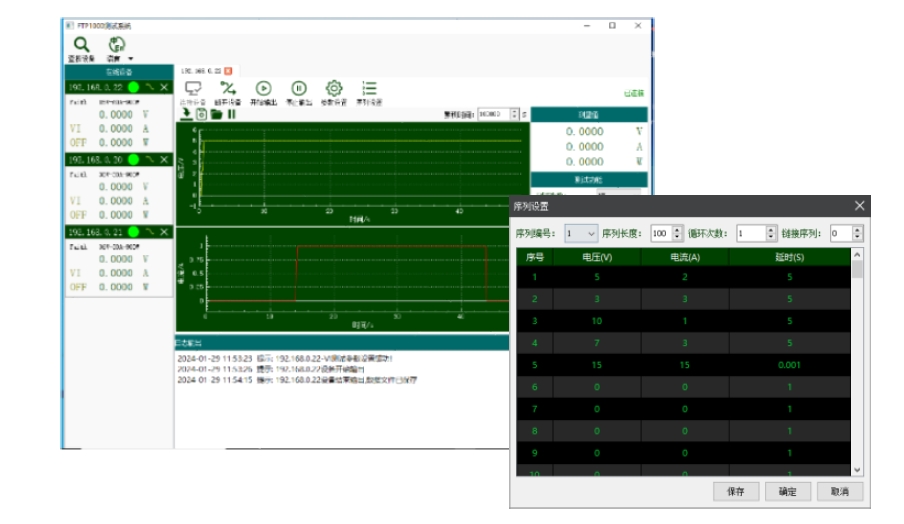

Computer graphical operation software
The FTP1000 series provides an upper computer software platform with virtual instrument function, which can set test data, read test data, generate images, export data, etc. remotely and in real time through the computer. At the same time, it can connect multiple devices to control separately, and the functions are available synchronously for testing.
