Solution Overview & Testing Methodology
With the continuous upgrading of consumer electronic products and the widespread use of intelligent design, it requires that precision power test equipment be used for quality assurance from components to the manufacturing of finished electronic products. The consumer electronic solutions provided by Faith can well complete the testing of consumer electronic products, ensuring the stability, durability and safety of products.
The high-precision battery simulators FT8330, FT8331, FT8340, and FT8350 can ensure the R&D and production quality of the battery protection board. At the same time, battery simulator, FTP1000 series programmable DC power supply, FTG series low-voltage high current programmable DC power supply, and FTM8000 series board card can be tested for finished products, chargers, and DC-DC modules inside chargers.
System Test Setup & Architecture Diagram
Core Testing Capabilities & Features
Core Instruments for Consumer Electronics Test Solution
Electronic Load Standard FaithTech FT6200A series low-power Bench DC electronic load (150W/300W)
FT6200A series is a full-featured 150 W/300 W programmable electronic load. The load adopts 2U half-rack chassis design, offers 150 V or 500 V voltage range and 15 A or 30 A current range. It provides a 4.3-inch color LCD, GO/NG output port, and advanced features such as sequence mode programming, a
DC Power Supply Standard FaithTech FTP 3000 Series wide range programmable DC power supply (900W/1500W)
Single range: Voltage: 0 ~ 600V Current: 0 ~ 80A Power: 900W, 1500W

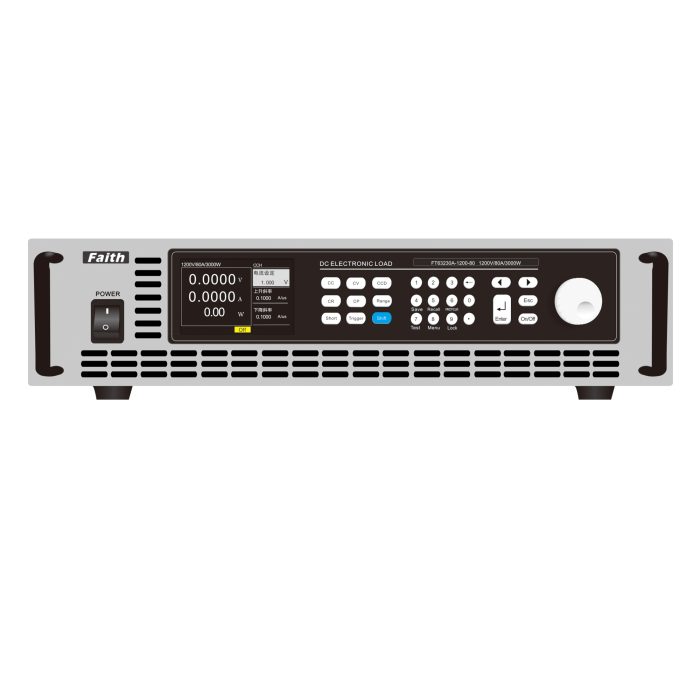

Electronic Load Standard FT63200A/E Medium Power Programmable DC electronic load(600W~3000W)
High Power Density : 2U/3kW, twice the power density of conventional loads Wide Voltage Range : Three voltage ranges: 150V, 600V, and 1200V High Power Range : Single power range from 750W to 3kW Fast Dynamic Frequency : Extremely fast dynamic frequency for increased testing capability and applicatio

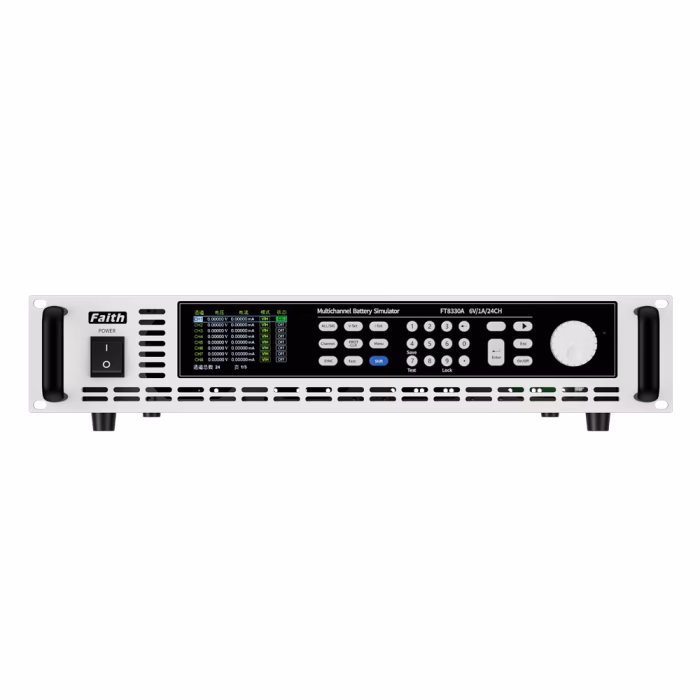

Battery Simulator Standard FT8330 Multi-channel Battery Simulator
The FT8330 series battery simulator is a high precision, multi-channel, single quadrant programmable battery analog power supply.Single device channels is up to 36 and each channel is electrically isolated, it is convenient for users to connect series and parallel power supplies. The ultra-high outp
Need a Custom Test Bench or System Integration?
Our experienced power test engineers can design a tailored hardware and software test setup for your project.
