Solution Overview & Testing Methodology
The control system of a vehicle is based on electronic devices, and the reliability of automotive electronic products directly affects the overall safety and reliability of the vehicle. With rich experience and products, FaithTech provides mature, reliable, and professional automotive electronic testing solutions for various fields, including automotive electronics, automotive wiring harnesses, automotive generators, high-voltage fuses, high-voltage connectors, automotive controllers, DC motor/DC-DC converter testing, brushless DC motors, and automotive lighting.
Our automotive electronic testing instrument product line can reach up to 2MW, with a maximum voltage of 2250V. Many of our products are equipped with 20 automotive electrical and electronic equipment standards, including FT6800 Series, FTB9000 series, FTG300-C series allowing engineers to quickly and directly call up performance tests and edit their own required test waveforms.

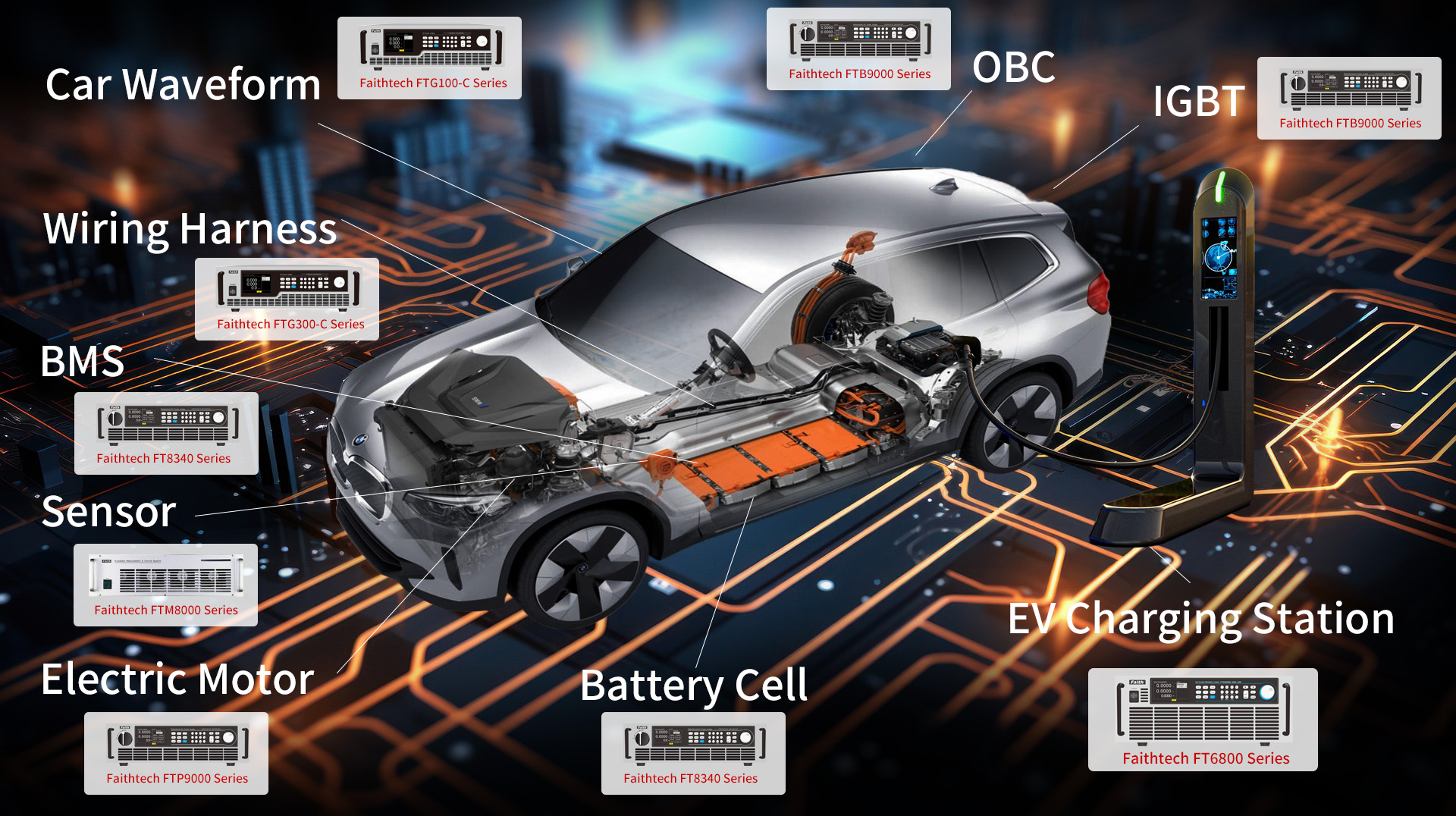

System Test Setup & Architecture Diagram
Core Testing Capabilities & Features
Core Instruments for Automotive Electronics Test Solution
DC Power Supply Standard FaithTech FTL series high precision DC power supply (90W-1500W)
The FTL series is a high precision DC linear power supply with high performance, multi-function, medium and small power features. The product is stable and mature, and has comprehensive protection functions such as reverse polarity, overvoltage, overcurrent, overload and overtemperature, which can k

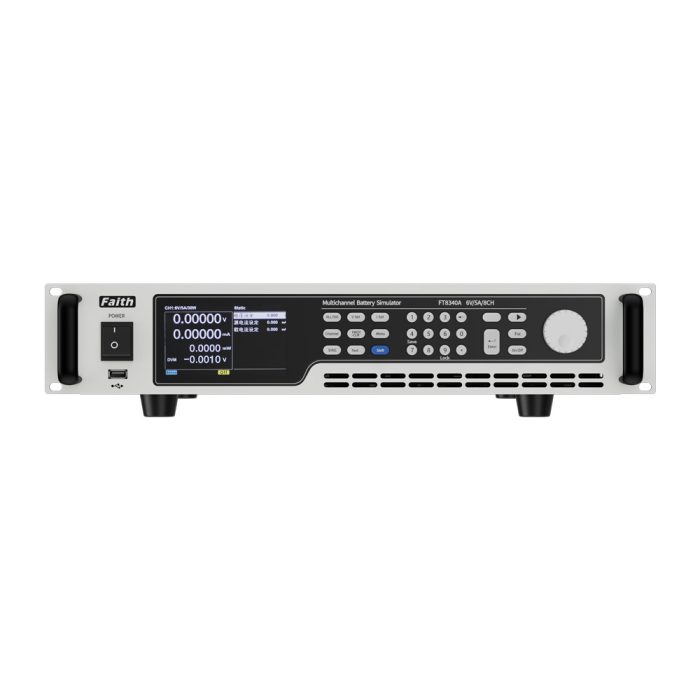

Battery Simulator Standard FT8340 Multi-channel Battery Simulator
High Precision, Multi-Channel Battery Simulator : Up to 12 channels, each electrically isolated, for flexible testing and simulation Dual Quadrant Programmable : Supports both charging and discharging, with various fault simulations for comprehensive testing Easy to Operate : Built-in upper computer

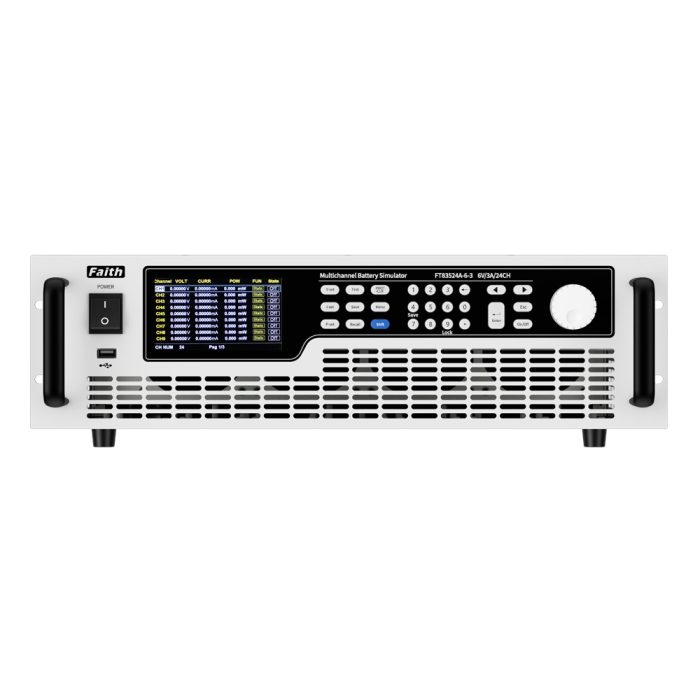

Battery Simulator Standard FT8350 Multi-channel Battery Simulator
FT8350 series is a high-precision, multi-channel, dual quadrant programmable battery simulator. Voltage precision up to 0.01% F.S., support μA level current measurement: there are up to 24 channels in a device, and the channels are isolated from each other, which is convenient for serial use of mult
Bidirectional DC Power Supply Standard FTB9000 series Bidirectional programmable DC power supply(5kw ~ ±180kW)
Regenerative Load Function : Reduces electricity costs and heat generation by feeding back energy to the factory intranet with 95% conversion efficiency Wide Operating Region : Combines power supply and electronic load with energy recovery capability for seamless switching between sourcing and sinki
Need a Custom Test Bench or System Integration?
Our experienced power test engineers can design a tailored hardware and software test setup for your project.
