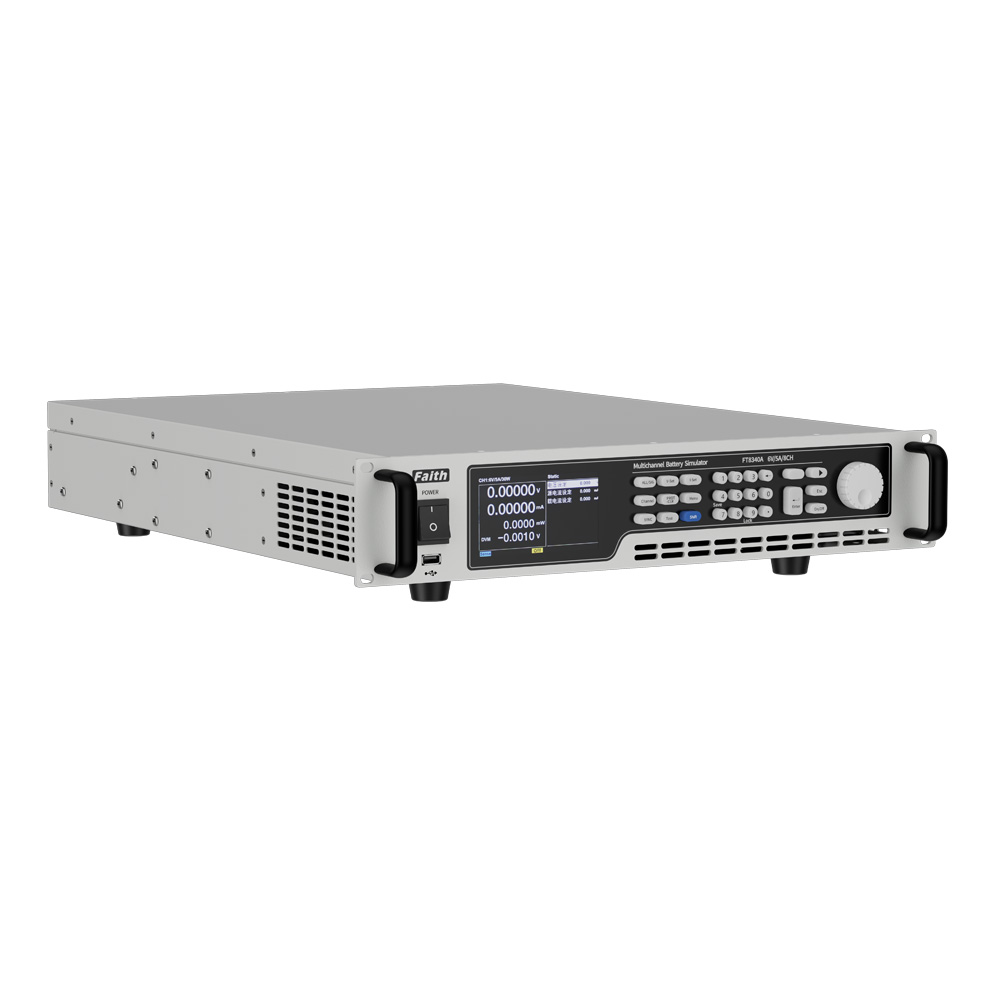

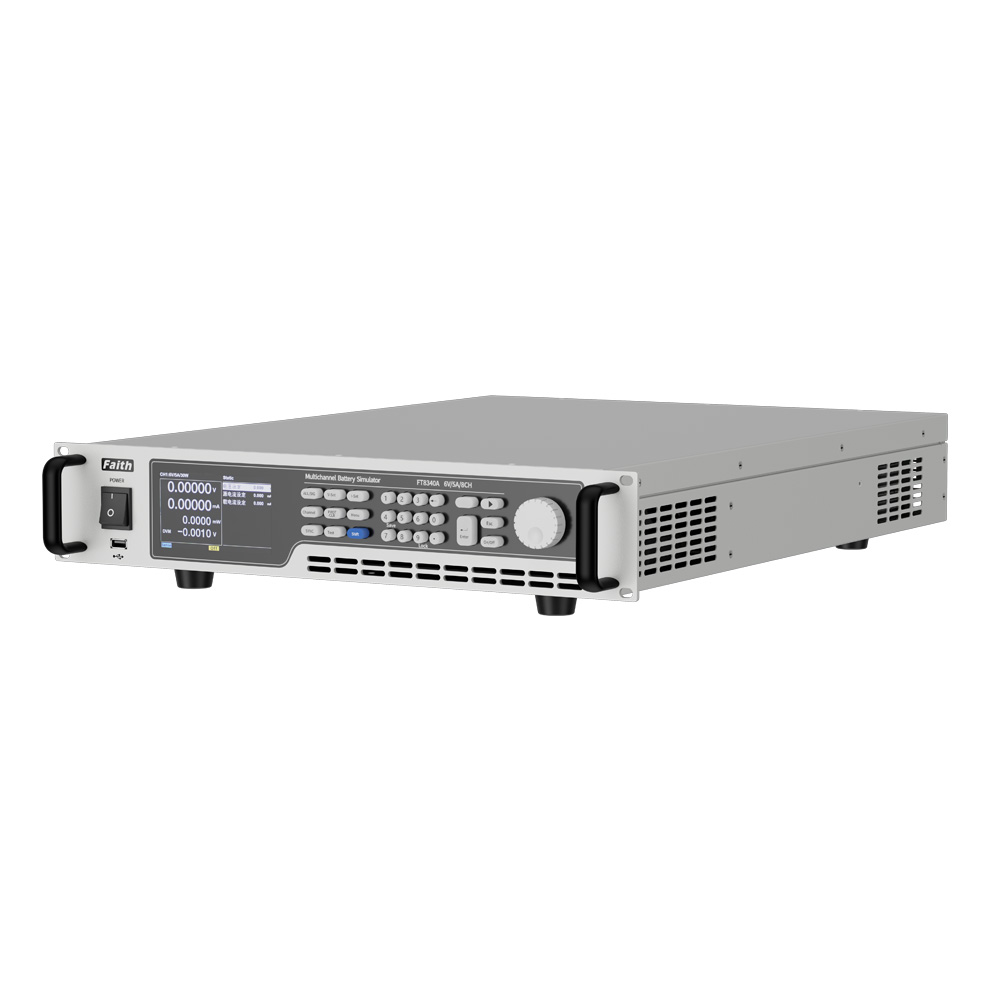

Standard FT8340 Multi-channel Battery Simulator
High Precision, Multi-Channel Battery Simulator : Up to 12 channels, each electrically isolated, for flexible testing and simulation Dual Quadrant Programmable : Supports both charging and discharging, with various fault simulations for comprehensive testing Easy to Operate : Built-in upper computer
Core Parameters
Product Overview & Technical Description
The FT8340 series is a high precision, multi-channel, dual quadrant programmable battery simulator.The current of the simulator can be charged and discharged，and supports various fault simulations, which can not only meet the requirements of BMS testing, but also meet the ATE testing of consumer electronics products.There are at most 12 channels in a device, and each channel is electrically isolated, which is convenient for users to use in series. The built-in upper computer software is easy to operate, flexible and easy to use. It supports single channel programming operations, multi-channel editing operations, and multi process programming operations.

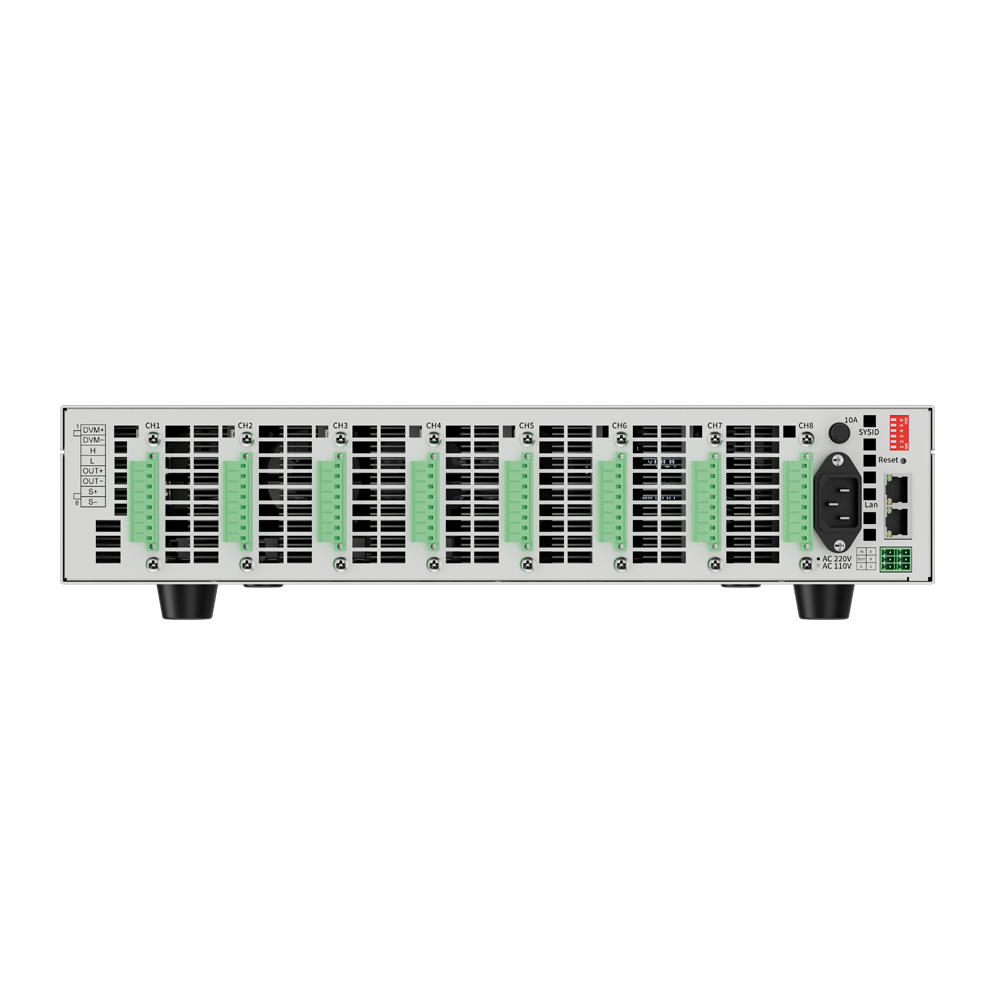

The FT8340 series uses a standard 19 inch chassis,2U height, and provides dual network ports and RS485 communication interfaces, which is convenient for integrating into the R&D and production line automation test platform, or can be used alone.
Various battery simulation
FT8340 series products have various battery simulation functions such as power mode, battery simulation, battery charging test, discharge test, fault simulation etc. Realize one device for multiple purposes, simplify test equipment and optimize test process. The user can also set the curve of cell parameters (SOC, voltage, capacity, internal resistance and other parameters fitting) to simulate the battery output for testing the products to be inspected.
Static power consumption testing
FT8340 has high-precision voltage and current measurement.Two current ranges with current accuracy up to 1μA.The FT8340 provides power supply for the tested product, which can visually test the static power consumption of the tested product in standby mode and screen out unqualified products.
Integrated fault simulation function (only for A series)
A device has at most 8 independent output simulator channels, each channel has built-in positive and negative short circuit, positive and negative circuit break, polarity reverse connection and other functions. It can be directly controlled by the upper computer software, eliminating the external matrix switch parts that simulate battery failure, saving more space and valuable investment for users.

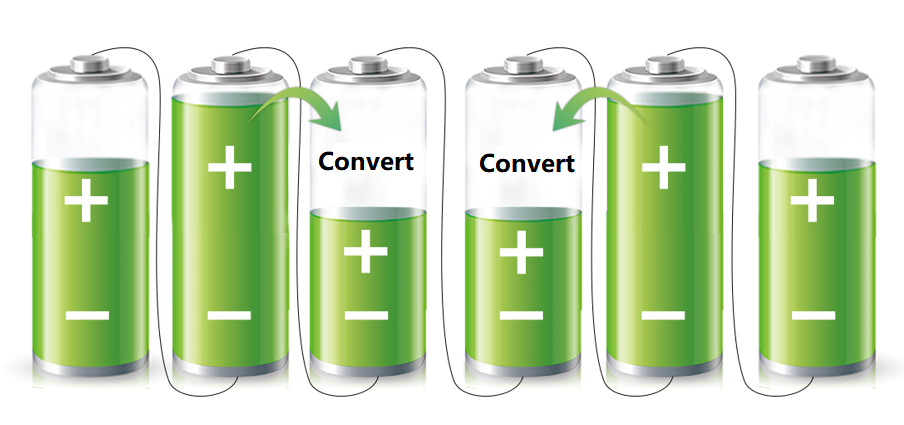

Support active and passive equalization
FT8340 series adopts current bidirectional design, each channel supports current output and suction, and the balanced current is up to 5A. The user can customize the battery charging and discharging model and conduct real-time control through a dedicated host computer, which fully meets the requirements of BMS active/passive equalization test.
Application fields
- BMS（battery management system）testing;
- CMS（capacity management system）testing;
- Consumer electronics testing such as earphones, phones, tablets, e-cigarettes etc;
- Production testing of electric tool products;
- Power supply testing for other types of electronic products.
