FTLP series is a kind of programmable Portable bench DC power supply, with the widest output range, which allows engineers to test more program requirements with just one device. To be exact, the FTLP series provides full power all the way down to 25% of the rated output voltage. The FTLP series is equipped with RS232 and RS485 as standard interfaces that are essential for system integration, you can also choose USB or LAN interface as your add-on interface. The series supports SCPI and MODBUS-RTU protocol, which is convenient for all kinds of test platform. The FTLP series DC power supply can be widely used in battery chargers, high-voltage ultra-high-speed diodes, electrolytic capacitors, electromechanical control fields, and ATE test systems, etc.
Advantages :
FTL8005P 100W DC Power Supply V/I curve
the FTLP series provides full power all the way down to 25% of the rated output voltage. Take FTL8005P as an example, with 100W outpt power, the output voltage and current value can be adjusted within 80V/5A, one single power supply can replace the previous four models of 80V×1.2A/60V×1.6A/32V×3.1A/20V×5A, reducing your repeated investment.

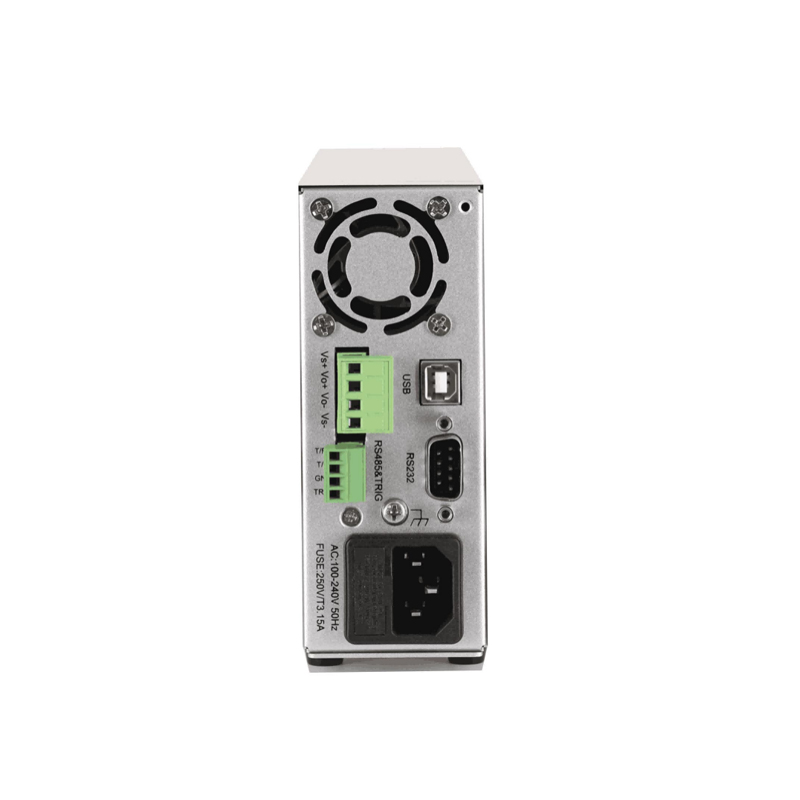

Instrument panel view :
Dimension :
Standalone dimension (Unit: mm)
8 channel chassis dimension (Unit: mm)
Feature
■ Universal 100-240VAC, 47~63Hz input
■ Totally digital controlled
■ High resolution at full scale
■ Low ripple noise
■ Minimum dimension
■ High brightness display
■ CC, CV, CP output modes, automatic crossover between CC and CV modes
■ Standard RS232 and RS485, optional USB/LAN;
■ Support SCPI and MODBUS-RTU communication protocol
■ OVP, OCP, OTP protection functions
■ Output On/Off control
■ Remote sense, external trigger
■ High quality, high price-performance ratio
■ Preset up to 4×100 groups of output voltage and current
